Fender (Parts) – American Special Stratocaster Neck, 22 Jumbo Frets, Maple

Fender (Parts) – American Special Stratocaster Neck, 22 Jumbo Frets, Maple

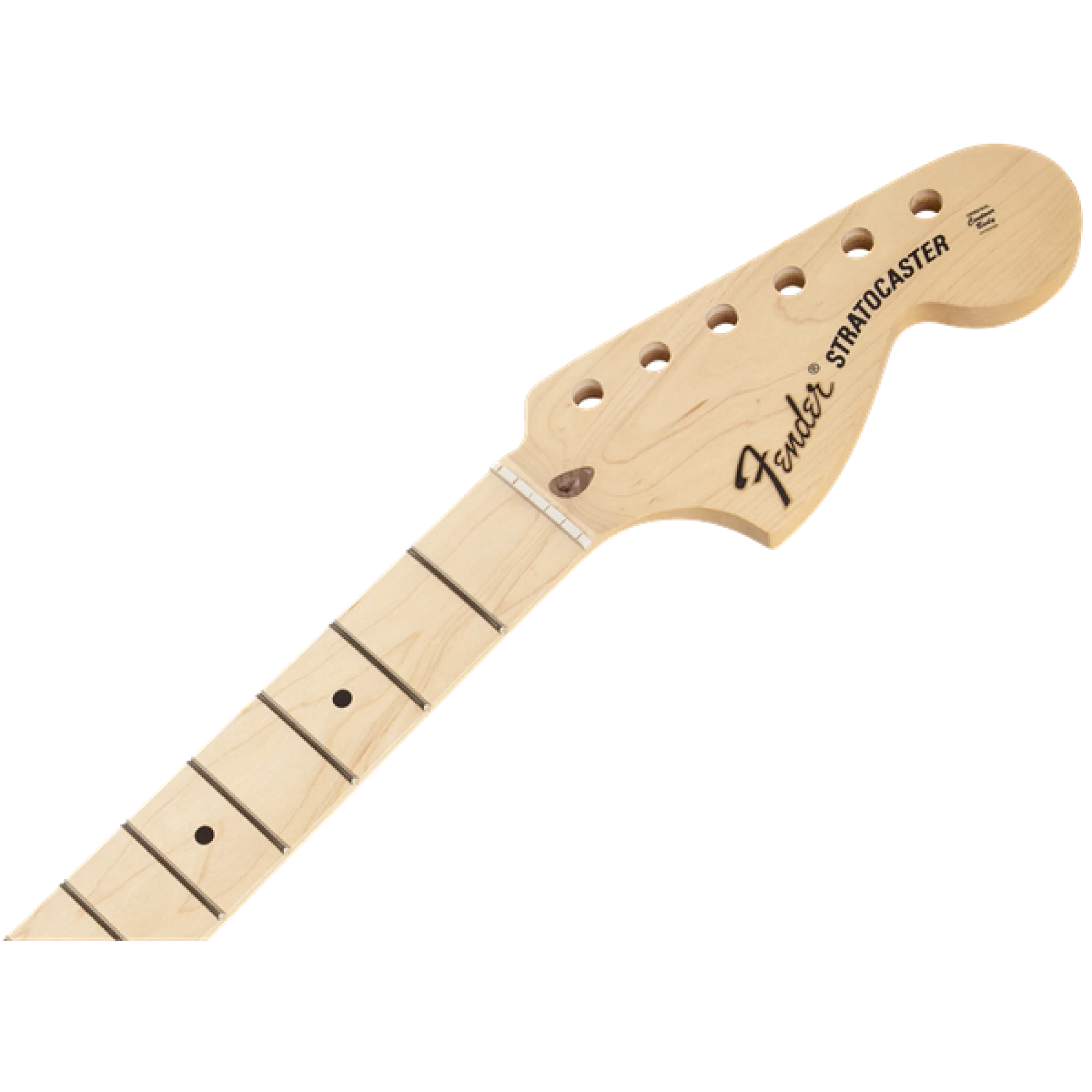

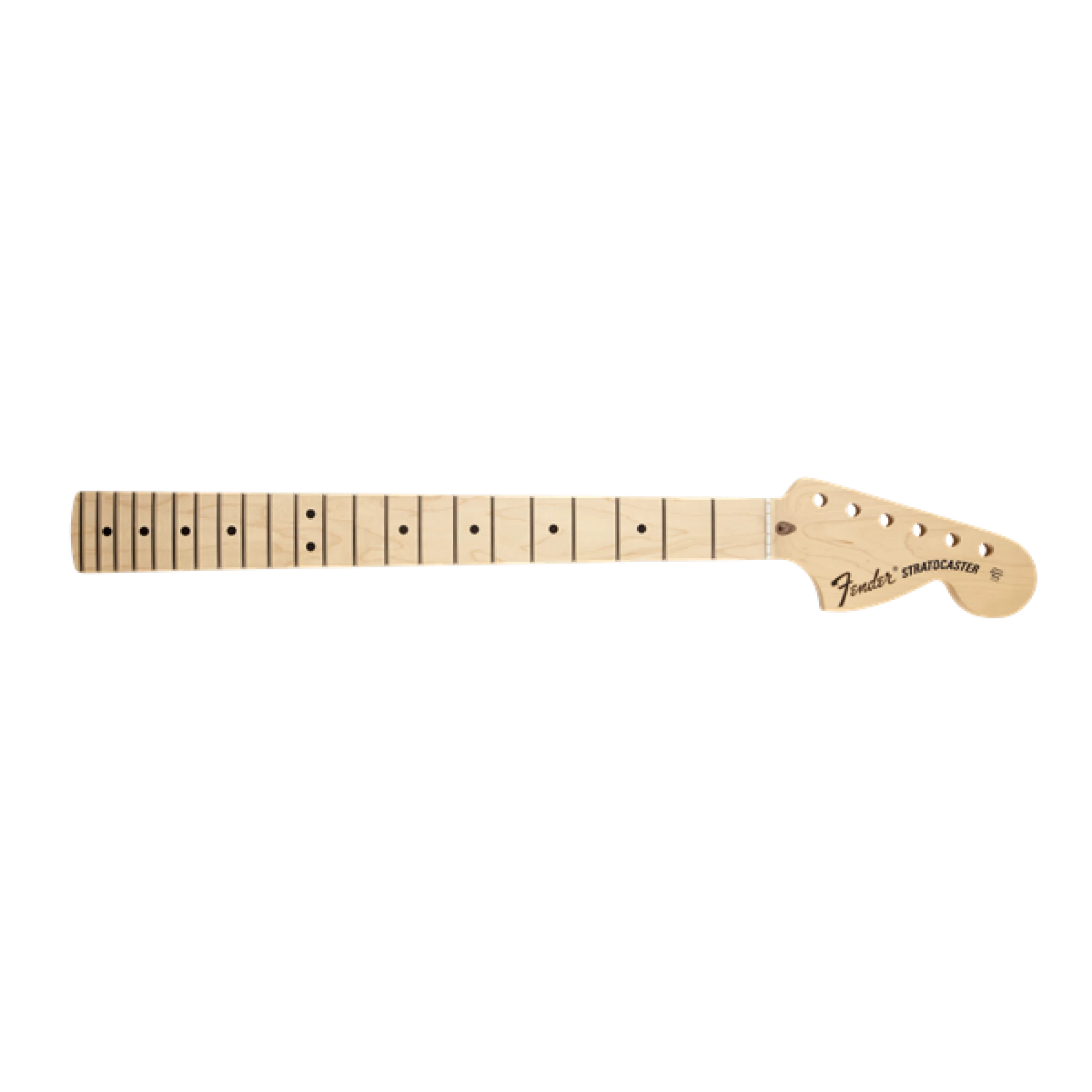

Genuine U.S.-made Fender Stratocaster guitar maple neck features a comfortable “modern C” profile and 9.5″-radius maple fingerboard with 22 jumbo frets and rolled edges, ’70s-style headstock and pre-slotted synthetic bone nut. Satin urethane finish for smooth feel.

Specifications and Features:

• Fingerboard: Maple
• Number of Frets: 22
• Fret Size: Jumbo
• Neck Shape: Modern “C”
• Neck Material: Maple
• Neck Finish: Satin Urethane
• Fingerboard Radius: 9.5″ (241 mm)
• Scale Length: 25.5″ (648 mm)
• Nut Material: Synthetic Bone (Melamine)
• Nut Width: 1.6875″ (42.8 mm)
• Position Inlays: Black Dot
• Truss Rod: 1/8″ Truss Rod Adjustment Nut
• Standard 4-Bolt Neck Mount
• 6 Pre-Drilled Tuning Machine Holes with 2-Guide Pin Holes for Each Tuning Machine
• Each neck is serialized and stamped during quality inspection

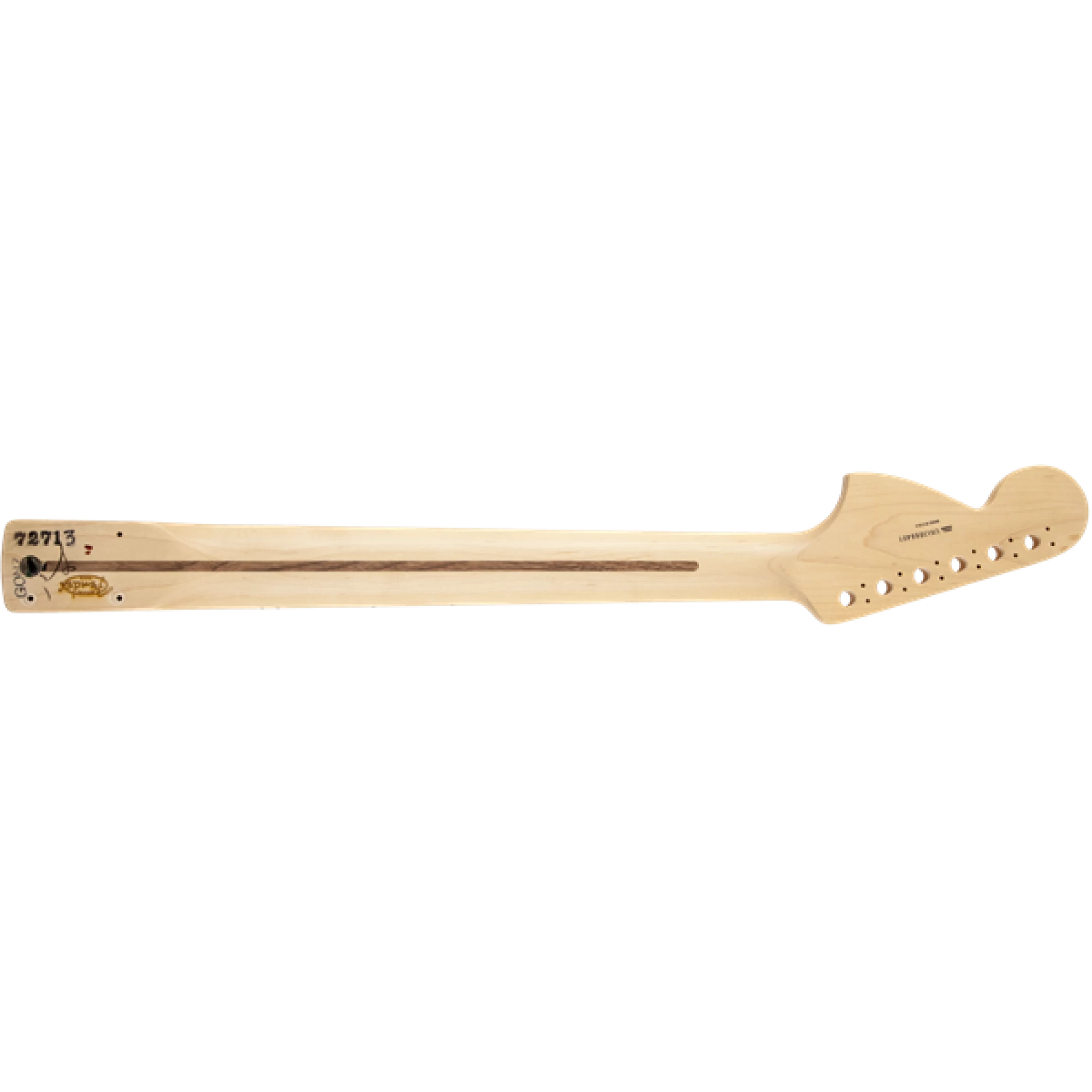

• Walnut “skunk” stripe on back of neck
• Dual string tree design
• Fender Logo Decal includes “Made in USA” and “Original Contour Body”

Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)

Measurements:

• Peg Hole Diameter – .404” (10.26 mm)
• Headstock Thickness – .540” (13.71 mm)
• Thickness at the 1st Fret – .820” (20.82 mm)
• Thickness at the 12th Fret – .870” (22.09 mm)

Recommended Tuning Machines:

• Standard Guitar Tuning Machines (p/n 0037429000)
• Locking Guitar Tuning Machines (p/n 0990818100)
• American Standard Guitar Tuning Machines (p/n 0990820100)

Please note, this item is a special order item. Please contact us for an estimated delivery time.
