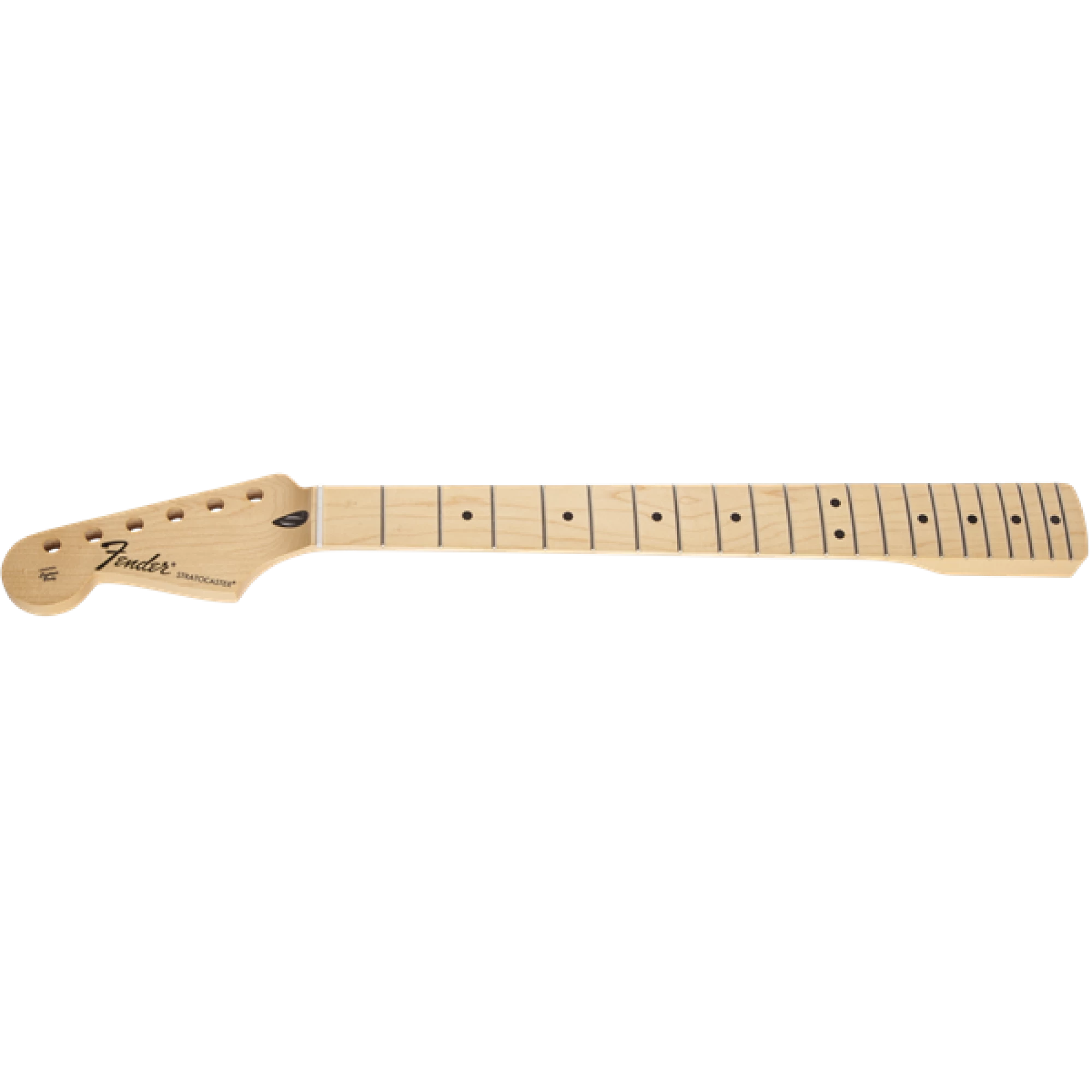

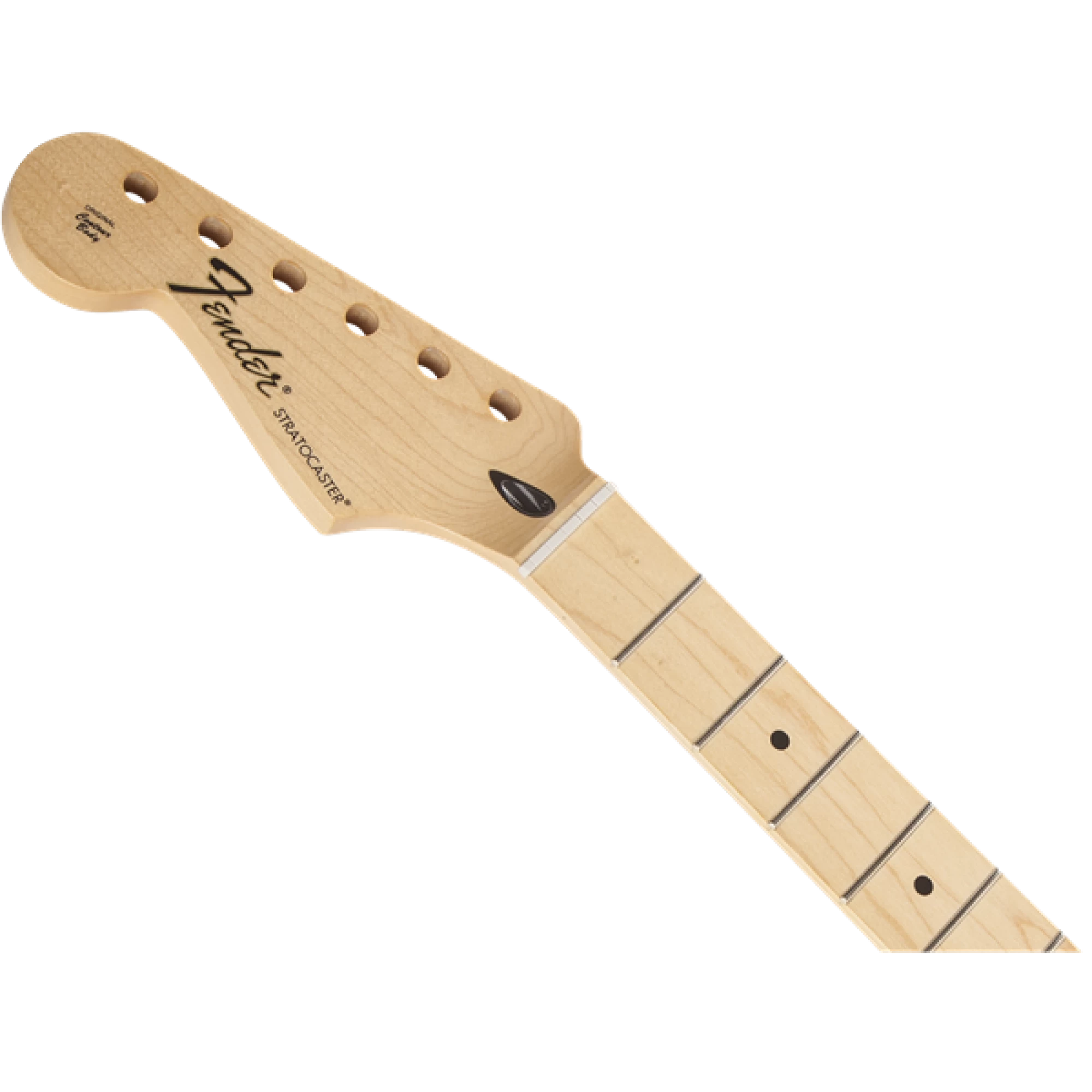

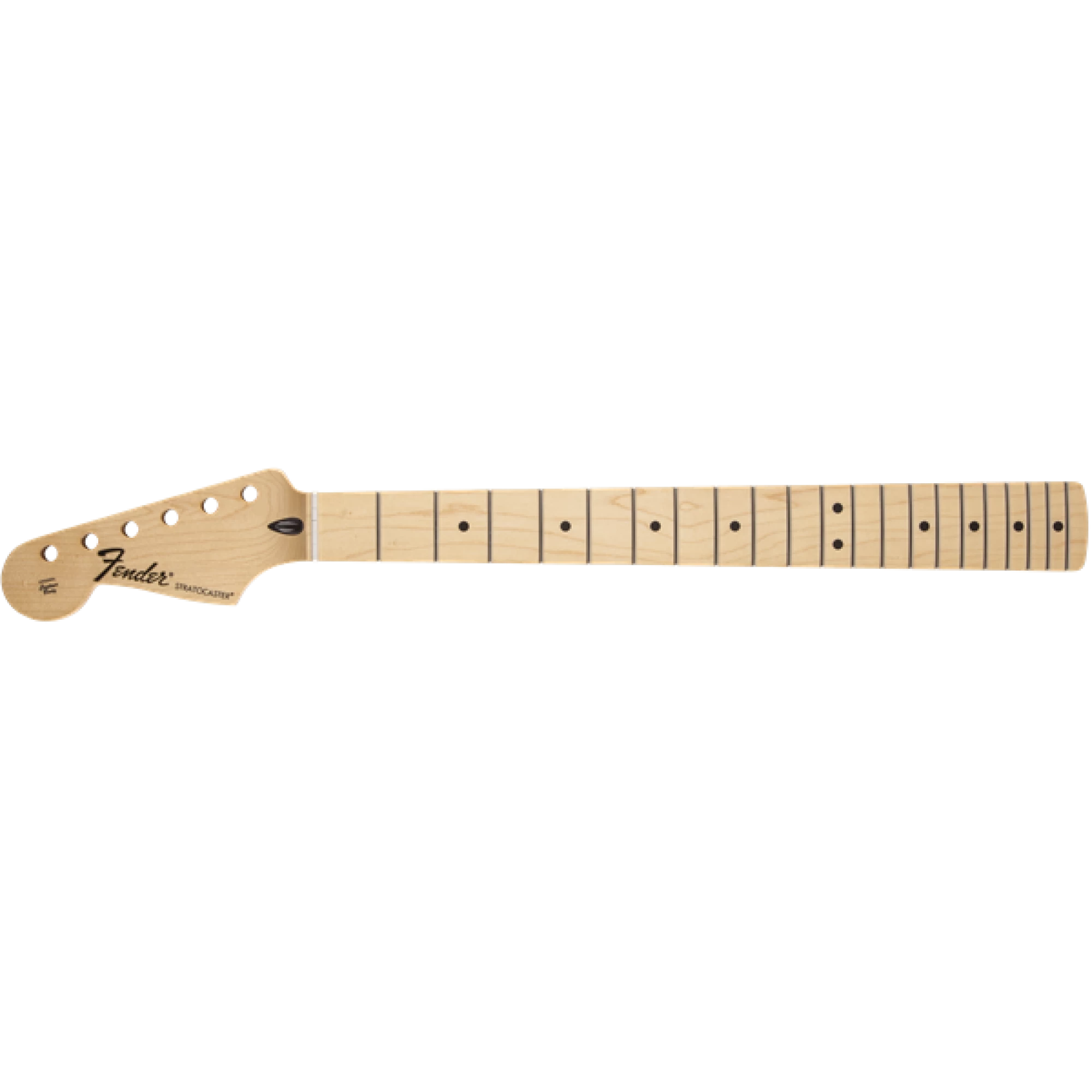

Fender (Parts) – Standard Series Stratocaster LH Neck, 21 Medium Jumbo Frets, Maple

Fender (Parts) – Standard Series Stratocaster LH Neck, 21 Medium Jumbo Frets, Maple

Genuine Fender Stratocaster guitar left-hand maple neck features a comfortable “modern C” profile and 9.5”-radius rosewood or maple fingerboard with 21 medium jumbo frets. Also includes standard truss rod and pre-slotted synthetic bone nut. Tinted satin urethane finish on back for smooth feel, with gloss finish on maple fingerboard and headstock face. Crafted at Fender’s Ensenada, Mexico, manufacturing facility.

This replacement neck is for a Fender or Squier by Fender guitar.

Specifications and Features:

• Left-Hand Configuration
• Fingerboard: Maple
• Number of Frets: 21
• Fret Size: Medium Jumbo
• Neck Shape: Modern “C”
• Neck Material: Maple
• Neck Finish: Satin Urethane on Back of Neck, Gloss on Face of Headstock
• Fingerboard Radius: 9.5″ (241 mm)
• Scale Length: 25.5″ (648 mm)
• Nut Material: Synthetic Bone (Melamine)
• Nut Width: 1.650″ (42 mm)
• Position Inlays: White Dot
• 3/16″ Truss Rod Adjustment Nut (At Headstock)
• 6 Pre-Drilled Tuning Machine Holes with 2-Guide Pin Holes for Each Tuning Machine
• Each neck is serialized and stamped during quality inspection
• Walnut “skunk” stripe on back of neck
• Fender Logo with “Original Contour Body” Decal

Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)

Measurements:

• Peg Hole Diameter – .404” (10.26 mm)
• Headstock Thickness – .540” (13.71 mm)
• Thickness at the 1st Fret – .820” (20.82 mm)
• Thickness at the 12th Fret – .870” (22.09 mm)

Recommended Tuning Machines:

• Locking Guitar Tuning Machines (p/n 0055306000)
• Standard Guitar Tuning Machines (p/n 0073119000)

Please note, this item is a special order item. Please contact us for an estimated delivery time.
Buy the Standard Series Stratocaster LH Neck, 21 Medium Jumbo Frets, Maple from Musos Corner Today!
