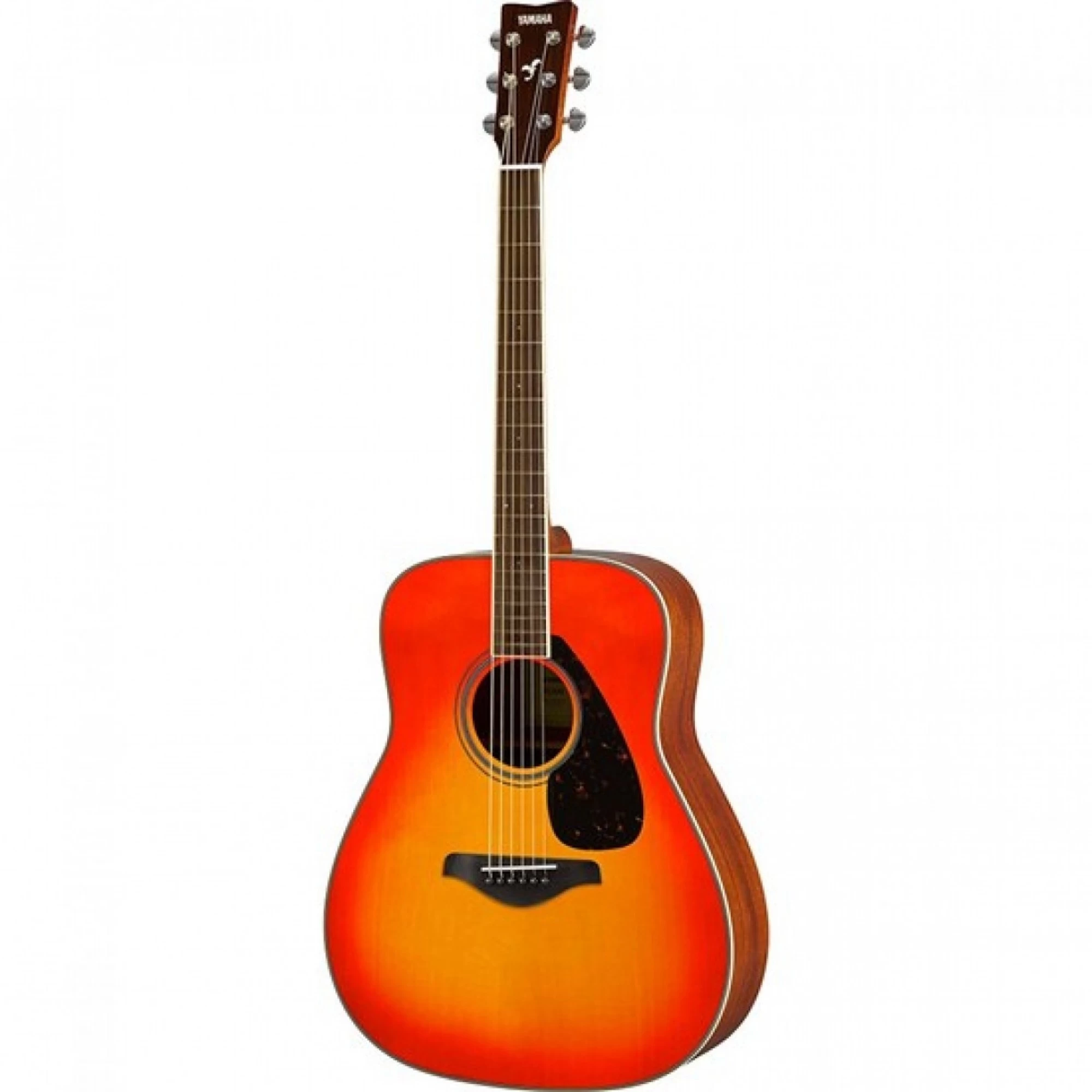

Yamaha FG820 Acoustic Guitar in Autumn Burst

It All Starts Here

In addition to warmer and stronger sound thanks to the mahogany back and sides, the body binding and fingerboard binding are cream plastic, for an upgraded look. A wealth of color options are available.

NEWLY DEVELOPED SCALLOPED BRACING

A new FG has louder and stronger sound in the low- to mid-ranges, thanks to cutting-edge acoustic analysis technology developed by the Yamaha R&D Division.
Yamaha’s engineers have achieved this sound by utilizing analysis and simulation to arrive at the best bracing design without depending on tradition or guesswork.
This analysis led to the development of the new scalloped bracing pattern, a new and ideal acoustic structure that maintains the durability of the top board while bringing out the most sound the Yamaha FG has to offer.

GENERAL SPECIFICATIONS

BODY SHAPE		Traditional Western
SCALE LENGTH		650mm (25 9/16”)
BODY LENGTH		505mm (19 7/8″)
TOTAL LENGTH		1038mm (40 7/8″)
BODY WIDTH		412mm (16 1/4″)
BODY DEPTH		100-118mm (3 15/16”- 4 5/8”)
NUT WIDTH		43mm (1 11/16”)
STRING SPACING *		11.0mm
TOP MATERIAL		Solid Spruce
BACK MATERIAL		Mahogany
SIDE MATERIAL		Mahogany
NECK MATERIAL		Nato
FINGERBOARD MATERIAL		Rosewood
FINGERBOARD RADIUS		R400mm (23 5/8″)
BRIDGE MATERIAL		Rosewood
NUT MATERIAL		Urea
SADDLE MATERIAL		Urea
BRIDGE PINS		Black ABS with White Dot
TUNERS		Die-cast Chrome(TM29T)
BODY BINDING		Cream
SOUNDHOLE INLAY		Black + White
PICKGUARD		Tortoise Pattern (Black for the BL and SB color variation)
BODY FINISH		Gloss
NECK FINISH		Matt
ELECTRONICS		None
CONTROLS		None
CONNECTIONS		None
STRINGS		.012/.016/.025(or.024)/.032/.042/.052(or.053)
ACCESSORIES		Hex Wrench
CASE		None
